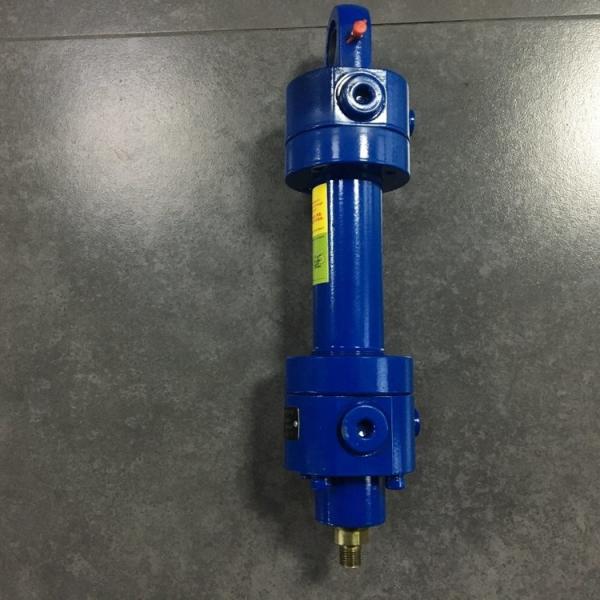

CDH3 CDM1 CDL1 CDT3 Rexroth Hydraulic Cylinder CDH1M CDH2M CGH1 CGH2

Brand Name : Rexroth

Model Number : CGH1MF3/100/56/300A3X/B11CADMW

Certification : ISO

Place of Origin : German

MOQ : 1

Price : 2

Payment Terms : MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability : 200

Delivery Time : 3-8 weeks

Packaging Details : 1

After Serive : online video

Condition : New

Pressure : High Pressure

Power : Hydraulic

Type : Axial Piston Pump

Type No : CGH1MF3/100/56/300A3X/B11CADMW CGH1MF3/100/56/300A3X/B11CADMZEWABW

Charging : micro5p

Inlet Connection : Threaded or Flanged

Model : CGH1

Contact Now

CGH1MF3/100/56/300A3X/B11CADMW CGH1MF3/100/56/300A3X/B11CADMZEWABW Original German Rexroth hydraulic cylinder CDH3 CDM1 CDL1 CDT3 CDH1M CDH2M CGH1 CGH2

whatsapp 85267220981 email Yli97584@gmail.com
Installation size DIN ISO 3320 Installation type 13 installation methods
Piston diameter/cylinder diameter (Ø AL) 40 - 320 mm Piston rod diameter (Ø MM) 22 - 220 mm
Stroke Length Up to 6000 mm nominal pressure 250bar(25 MPa)
Maximum working pressure 450 bar (45MPa) can be customized according to requirements Static testing pressure 375 bar(37.5 MPa)
Minimum starting pressure ≤0.5Mpa Position buffer Adjustable front and rear options
Hydraulic oil Mineral oil HL, HLP oil in water emulsion HFA water ethylene glycol l HFCP phosphate ester HFD-R in accordance with DIN 51524 service life One year warranty
check and accept Test each hydraulic cylinder according to Rexroth standards and ISO 10100:2001 Installation position bitrary
Hydraulic oil temperature range exhaust Default before and after
Appearance paint coloring optional travel speed 0.5m/s (depending on the size of the oil port)
brand Rexroth Rexroth model CDH3 CDM1 CDL1 CDT3 CDH1M CDH2M CGH1 CGH2

CDH3 CDM1 CDL1 CDT3 Rexroth Hydraulic Cylinder CDH1M CDH2M CGH1 CGH2

CDL1MP5/40(50,63,80,100,125,160,200)/22(28,36,45,56,70,90,110)/行程长度(<1400)D1X/B1CH(F,K)UM(V)WW(Y,LY=?<800)
CDL1MP5/63/36/100D1X/B1CHUMWW
CDL1MP5/40/22/310D1X/B1CFUMWW
CDL1MP5/100/56/450D1X/B1CFUVWW
CDL1MP5/63/36/450D1X/B1CFUVWW
CDL1MP5/125/70/350D1X/B1CFUVWW
CDL1MP5/63/36/1000D1X/B1CFUVWW
CDL1MP5/40/22/252D1X/B1CFUMWY, LY=50
CDL1MP5/100/56/630D1X/B1CFUMWW
CDL1MP5/63/36/150D1X/B1CFUMWW
CDL1MP5/100/56/300D1X/B1CFUMWW
CDL1MP5/100/56/100D1X/B1CFUMWW
CDL1MP5/160/90/360D1X/B1CFUMWW
CDL1MP5/160/90/220D1X/B1CFUMWW
CDL1MF3/25(32,40,50,63,80,100,125,160,200)/14(18,22,28,36,45,56,70,90,110)/行程长度(<1400)D1X/B1CH(K)UM(V)WW(Y,LY=?<800)
CDL1MF3/200/110/600D1X/B1CHUMWW
CDL1MF3/200/110/150D1X/B1CHUMWW
CDL1MF3/125/70/150D1X/B1CKUMWW
CDL1MF3/100/56/630D1X/B1CHUMWW
CDL1MF4/25(32,40,50,63,80,100,125,160,200)/14(18,22,28,36,45,56,70,90,110)/行程长度(<3000)D1X/B1CH(K)UM(V)WW(Y,LY=?)
CDL1MF4/50/28/200D1X/B1CHUMWW
CDL1MF4/63/36/300D1X/B1CHUMWW
CDL1MF4/80/45/210D1X/B1CHUMWW
CDL1MF4/40/22/100D1X/B1CHUMWW
CDL1MF4/25/18/150D1X/B1CHUMWW
CDL1MF4/100/56/260D1X/B1CHUMWW
CDL1MF4/160/90/180D1X/B1CHUMWW
CDL1MF4/200/110/400D1X/B1CHUMWW
CDL1MT4/25(32,40,50,63,80,100,125,160,200)/14(18,22,28,36,45,56,70,90,110)/行程长度(min/max = 21/600)C1X/B1CHUM(V)WW(Y,LY=?<450) XV=?(min/max = 68/647)
CDL1MT4/25/14/200C1X/B1CHUMWW XV = 150 mm
CDL1MT4/100/56/560C1X/B1CHUMWW XV=245 mm
CDL1MT4/125/70/370C1X/B1CHUVWW XV=330 mm
CDL1MT4/25/14/600C1X/B1CHUMWW XV = 600 mm
CDL1M00/25(32)/14(18)/行程长度(<1400)C1X/B1CHUM(V)WW(Y,LY=?<390)
CDL1M00/25/14/210C1X/B1CHUMWW
CDL1M00/25/14/260C1X/B1CHUMWW
CDL1M00/25/14/280C1X/B1CHUMWW
CDL1M00/32/18/210C1X/B1CHUMWW
CDL1M00/32/18/260C1X/B1CHUMWW

FAQ:

Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q4: What's your payment terms ?
A4: By T/T,30% deposit in advance, balance 70% before shipment.
